TFT LCDs with same interface

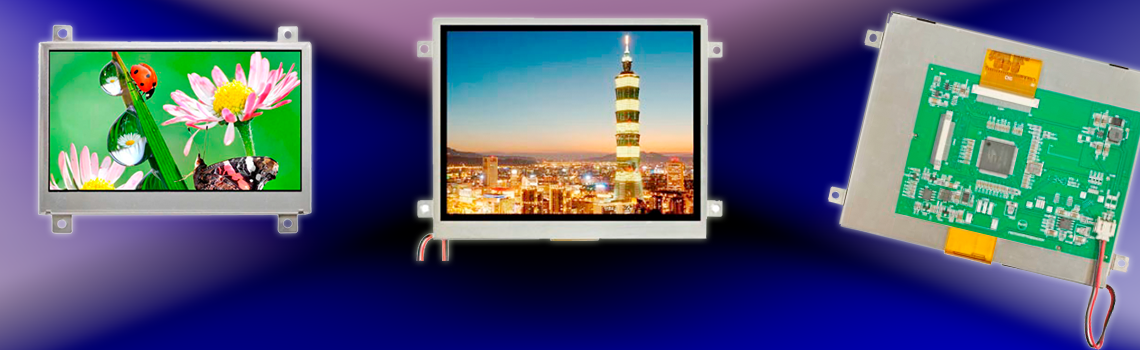

The WFxxQ-series from Winstar is a family of TFT modules which all have the same 36-pinout connector on the SSD1963 controller board. Using the same interface offers you the flexibility of choosing between display sizes without the need of adjusting the design of your application. The WFxxQ series includes 3.5", 4.3", 5.7", 7.0", 8.0" and 10.2" module sizes.

The WFxxQ Series feature 8-bit or 16-bit parallel interface option, pin 33 to 36 are already defined as backlight supply; there is no need to design an extra backlight circuit.

The Winstar TFT WFxxQ series provides innovative advantages, offer outstanding image quality and are easy to use.


Features
•  Onboard SSD1963 controller, same 36 pin connector
•  8 bit and 16 bit parallel interface options
•  Module sizes interchangeable
•  Pin 33 to 36 are already defined as backlight supply
•  Built-in backlight driver IC
•  All displays support an 5.0V input supply (3.5" and 4.3" also support 3.3V)
•  No need for changing of the backlight driver circuit if module size changes
•  Sleep mode option available on 5.7", 7.0", 8.0" and 10.2" displays
•  Resistive and capacitive touch screen options


Applications
•  Industrial control
•  Home automation
•  Security control
