PMOLED displays thin, efficient and high brightness

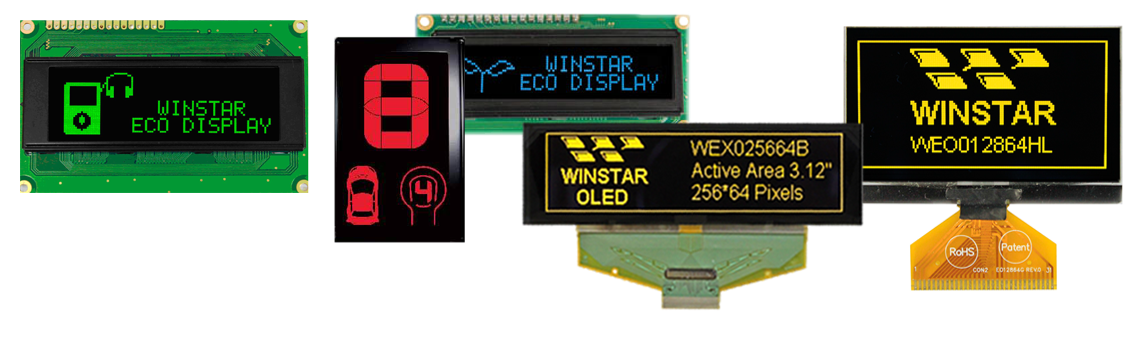

Winstar provides Character OLED display and Graphic OLED modules. They offer COB/COG/TAB construction PMOLED.
PMOLED do not require any backlight and filtering systems.

PMOLED stands for Passive-Matrix OLED, which relates to the way you control the display. A PMOLED display uses a simple control scheme in which you control each row (or line) in the display sequentially (one at a time).
PMOLED electronics do not contain a storage capacitor and so the pixels in each line are actually off most of the time. To compensate for this you need to use more voltage to make them brighter.

PMOLED displays are restricted in resolution and size. PMOLED displays are usually small (up to 3" typically) and used to display character data or small icons: they are being used in wearable devices, small gadgets and sub displays.

Winstar has formfit replaceable PMOLED displays in her portfolio, to exchange existing STN and FSTN designs.

PMOLED Displays are available in Yellow / Green / Red / White / Blue.


Features
•   Faster response time: 10 µsec
•   Unlimited viewing angle up to 175° degree
•   Thin, no need of backlight, self-emitting
•   High Brightness
•   High contrast ratio up to 2000:1
•   Wide Operation Temperature -40° ~ 80 °C
•   Lower power consumption
•   Sunlight Readable Technology Option

Applications
•   Portable devices
•   Small gadgets
•   Sub displays
•   Outdoor
•   Industrial
