OLED Models for Wearable Devices 0.91 and 0.96 inch

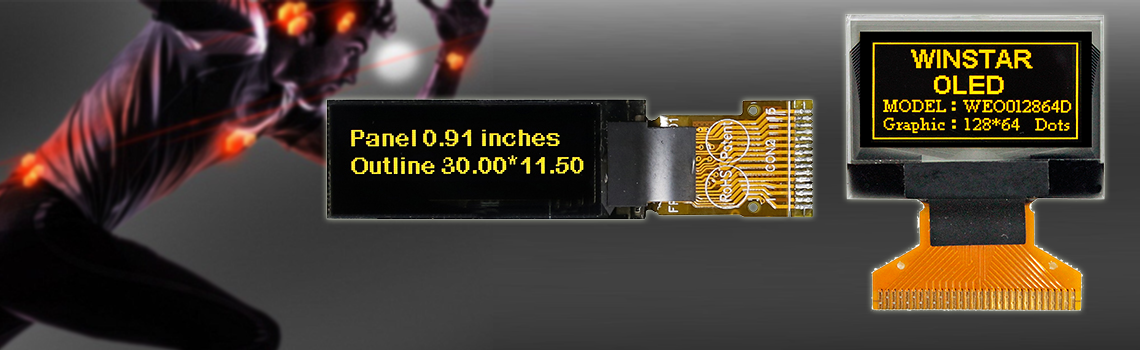

Winstar Display has two new compact OLED displays the WEO012832D and the WEO012864D which are very suitable for wearable devices, these displays are very small and have a built-in SSD1303 IC controller.

The WEO012832D is 0.91 inch 128x32 module (one of the most popular sizes for wearable devises) and an outside dimension of 30 x 11.5 mm.
The WEO012864D is a 0.96 inch 128x64 module with a total dimension of 26.7 x 19.26 mm. The displays have an operation temperature from -40176C till +80176C.


Specifications



Product

WEO012832D

WEO012864D

Dot Martix

128 x 32 Dots

128 x 64 Dots

Module dimension

30.0 x 11.5 x 1.45 (mm)

26.7 x 19.26 x 1.65 (mm)

Active aria

22.384 x 5.584 (mm)

21.738 x 10.858 (mm)

Pixel Size

0.152 x 0.152 (mm)

0.148 x 0.148 (mm)

Pixel Pitch

0.175 x 0.175 (mm)

0.17 x 0.17 (mm)

Display Mode

Passive Matrix

Passive Matrix

Display Color

Yellow

Yellow

Drive Duty

1/32 Duty

1/64 Duty

IC

SSD1306

SSD1306



Applications
•   Bracelets
•   Watch
•   Wearable devices
