APLEX PhanTAM rugged waterproof stainless steel solution

Food-grade waterproof stainless steel Panel PCs

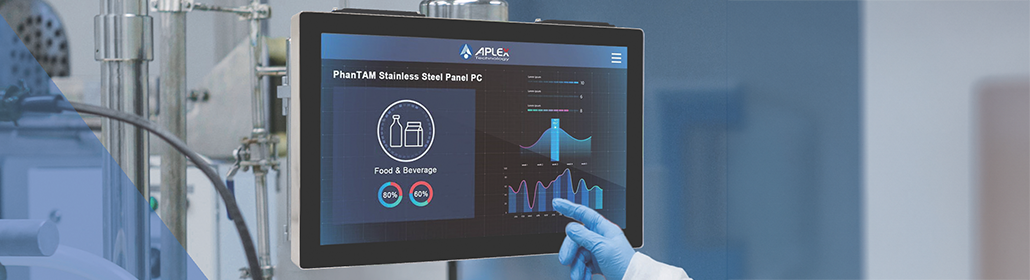

The PhanTAM series from APLEX are rugged stainless steel panel PCs and displays designed with hygienic considerations in mind. Available in 15.6 and 21.5-inch, they are fully IP66/ IP69K waterproof, easy to clean, and have flexible I/O interfaces.

Special FDA-grade hygienic bolts, with a blue silicone rubber O-ring, prevent water, dust, and even bacteria from accumulating. It withstands high temperatures and high-pressure water jet up to 100 bars at 80°C. PhanTAM’s ultra-slim design, Grade 304 stainless steel enclosure, with a true flat front bezel reduces system weight and makes it more stylish than its predecessors.



The APLEX PhanTAM is powered by an 11th Gen. Intel Core i3/i5 or Celeron J6412 CPU, providing high computing performance. The sunlight-readable TFT LCD offers PCAP multi-touch and a resolution of 1920x1080 (21.5-inch).



The versatile mounting methods, for example, VESA-, floor- desktop- and swing arm mount, allow you to use the PhanTAM in a wide range of applications.


Video

Key features
  • Completely IP tested: SUS 304/316, IP66/ IP69K/ gapless sealing
  • Food grade hygienic screws with NBR rubber O-ring
  • 7H PCT & RT multi-touch screen, sunlight-readable
  • 11th Gen. Intel Core i3/i5 or Celeron J6412
  • Internal antenna with waterproof cover, prevents bend damage issues
  • Flexible I/O interfaces with waterproof M12 connectors
  • RFID functionality (optional)

Applications
  • Food- and beverage automation
  • Pharmaceutical industries
  • Clean rooms
  • Chemical industries
  • Industrial, hazardous areas
