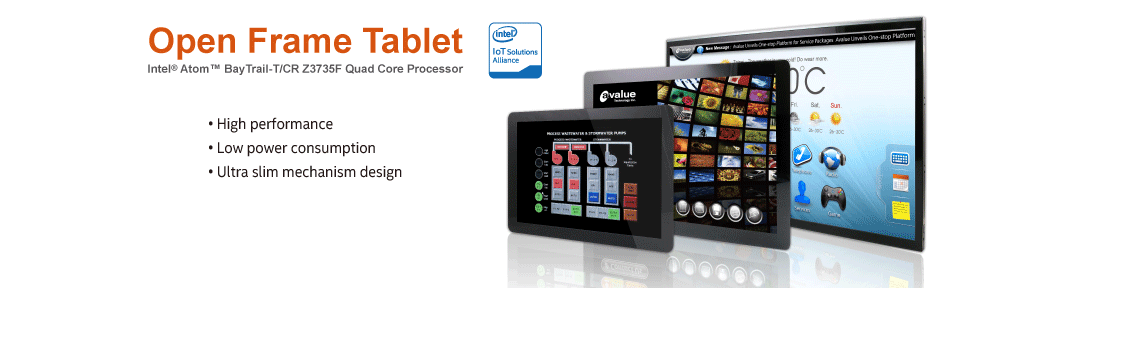

High performance and affordable open frame tablets


The OFT-series from Avalue Technology are true flat design open frame tablets, designed with an Intel® BayTrail-T/CR Z3735F 1.33GHz quad core CPU with 2GB DDR3L RAM and up to 32GB eMMC on board memory. To meet different application size needs, these tablets are available in sizes from 7 inch up to 21.5 inch.

The true flat design screen with PCAP touch accommodates a fast and sensitive touch response. Due to their ultra slim fanless design, lower power consumption and easy installation, these tablets fit into a variety of applications like POS, vending machine, gaming, digital signage and home automation.

The OFT-series come with USB 2.0, micro USB client, GbE (PXE Boot), micro SD card slot (SDXC support), HDMI, phone jack, GPIO, RS232, RS485, optional WiFi/Bluetooth combo module e.g.. They are multi OS compatible with Windows, Linux, Android and Ubuntu so they can easily be integrated in existing systems.


Features
•  True flat design open frame tablets
•  Available sizes: 7", 10.1", 15.6", 21.5"
•  Intel® Atom™ Z3735F, 1.33GHz quad core
•  2GB RAM, 8GB or 32GB eMMC onboard
•  PCAP Touch
•  WiFi (802.11B/G/N)/Bluetooth combo module (optional)
•  10/100 Ethernet (PXE Boot)
•  micro SD card slot (SDXC support)
•  Touch board interface (power, brightness, volume, LED)
•  16-bit programmable GPIO
•  RS232(TX/RX) or RS485
•  Typical DC 19V Input, Optional 12V & 24V support
•  Optional POE (10" only)
•  Multi OS compatible with Windows, Linux, Android and Ubuntu


Applications
•  Kiosk
•  Point of information
•  Self-checkout service
•  Smart home automation
•  Vending machines
