Anti-vandal switch series

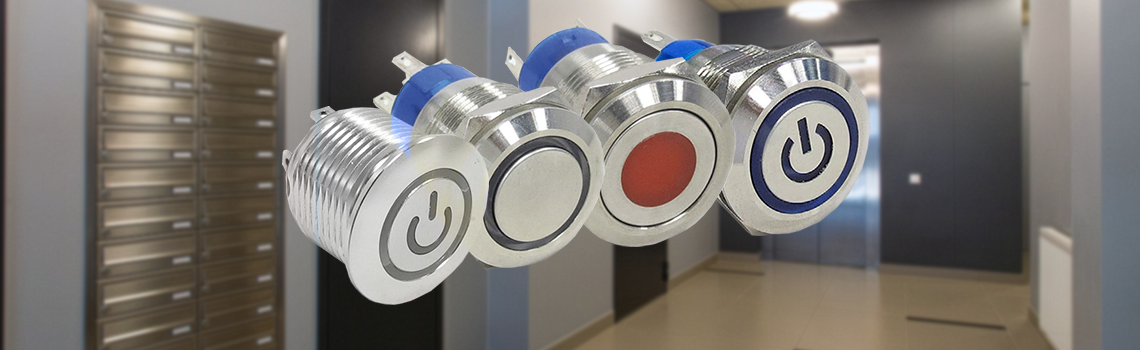

The AV-series from TE Connectivity (TE) is an anti-vandal switch series designed for security and reliability in a variety of panel mount industrial and building applications. The large pushbutton and available LED indicators illuminate the switch and allow for an easy user interface.

TE's anti-vandal series is available in panel sizes of 16, 19, and 22mm, with various pushbutton symbols including spot, ring, and power logo. The AV-series switches are sealed to IP67 and available in single and double pole configurations.


Features
•  Vandal proof solution
•  Jam nut accessible from the rear of the panel
•  Stainless steel actuator
•  Single or double pole configurations
•  16, 19, and 22mm panel diameter size
•  Long life cycle: 1,000,000 actuations (momentary)
•  Actuator force typically: 2.5 - 4.5N (depending on version)
•  IP67 sealed
•  LED indicator version available
•  Pushbutton symbols spot, ring and power logo available
•  Operating temperature: -20° to +55°C
•  UL (E46765) for AV19, AV22 series
•  RoHS Directive 2002/95/E compliant


Applications
•  Elevator & escalator
•  Kiosks
•  ATM machines
•  Public ticket dispensers
•  Vending machines
