The RAFIX 22FS+ and RAFIX 30FS+ is a modular two-part system for “wire to” fast on connection, or PCB’s. Designers can choose between the ultra-low profile PCB contact blocks with a 9.2mm back plane, or the wired connections, which can be soldered or accept 2.8mm x 0.5mm standard connector.
For the HMI actuator or indicator at the front of the panel, engineers can utilize a wide range of devices. One of the great features is that all actuators can use either connector giving maximum versatility and the ability to mix and match.
Integrate proven control units into your application
The 22 FS+ and 30 FS+ switches and signal lamps delivers robustness and maximum versatility to control every professional application.Simultaniously, the available Emergency Stop switches ensure a high level of operation safety.
This is a safe space... guaranteed. You'd be talking with professionals after all :)
Front
Panel
Back

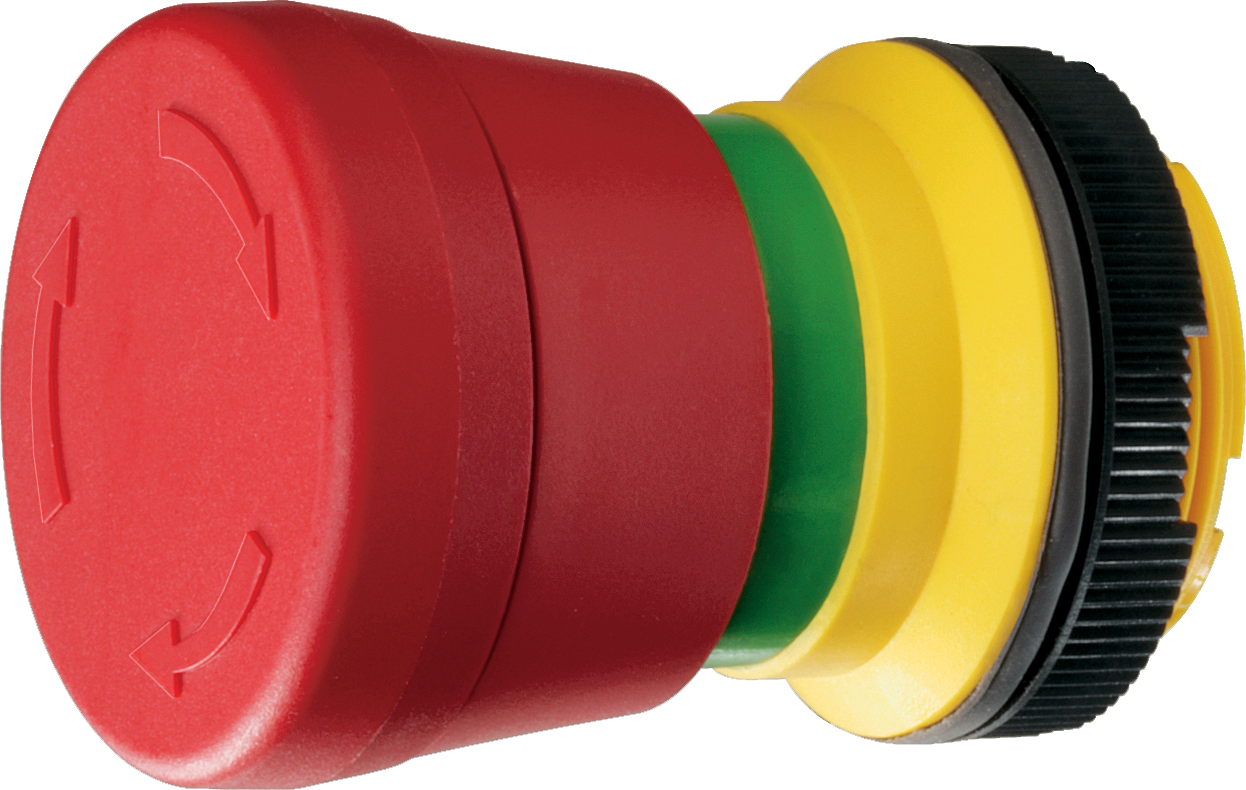

E-Stop
Pushbutton

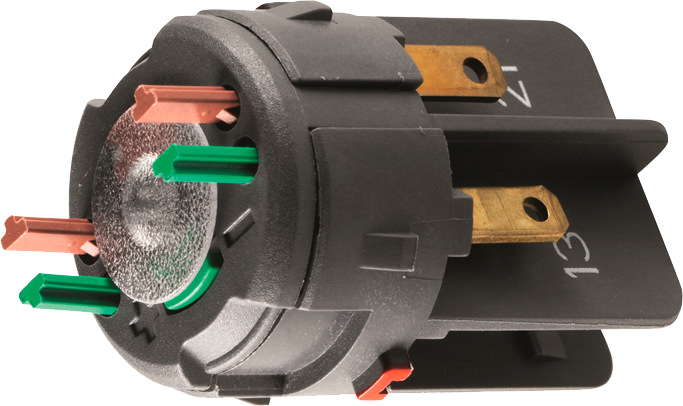

Quick-Connect / Fast-on

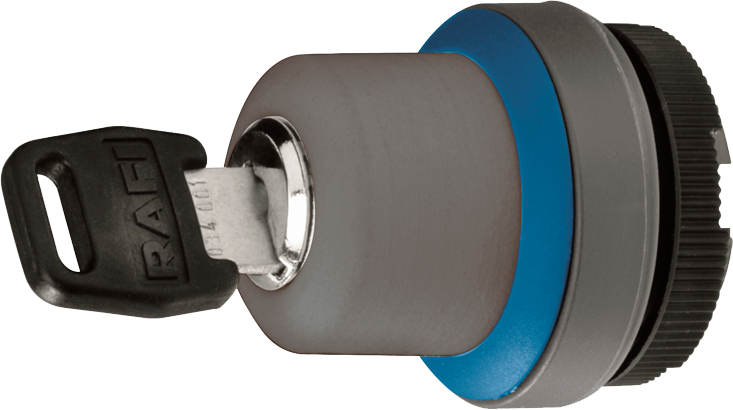

Keylock
QC LED element

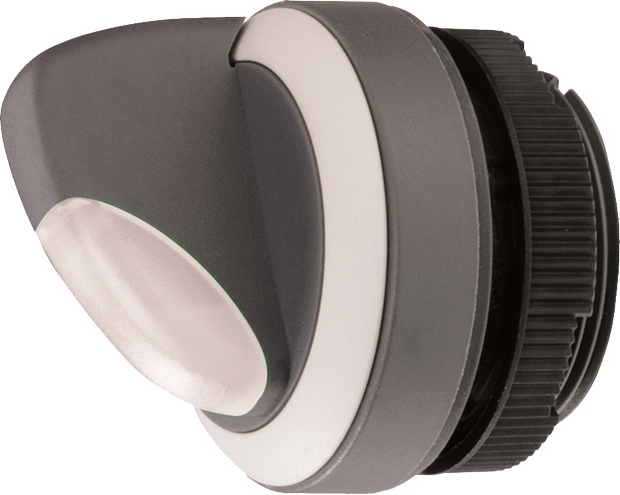

Selector

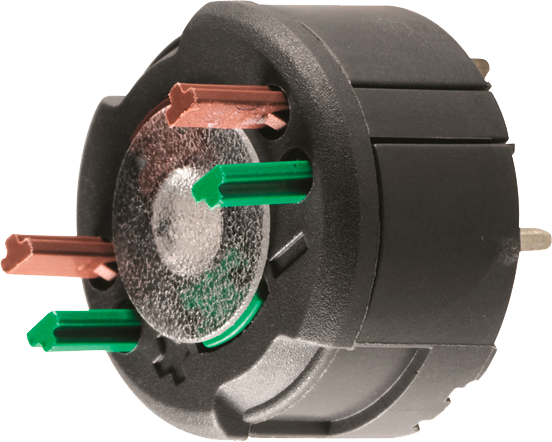

PCB / Pin

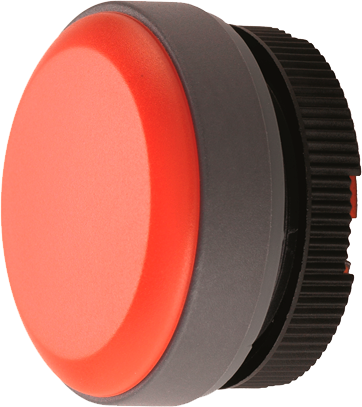

Indicator

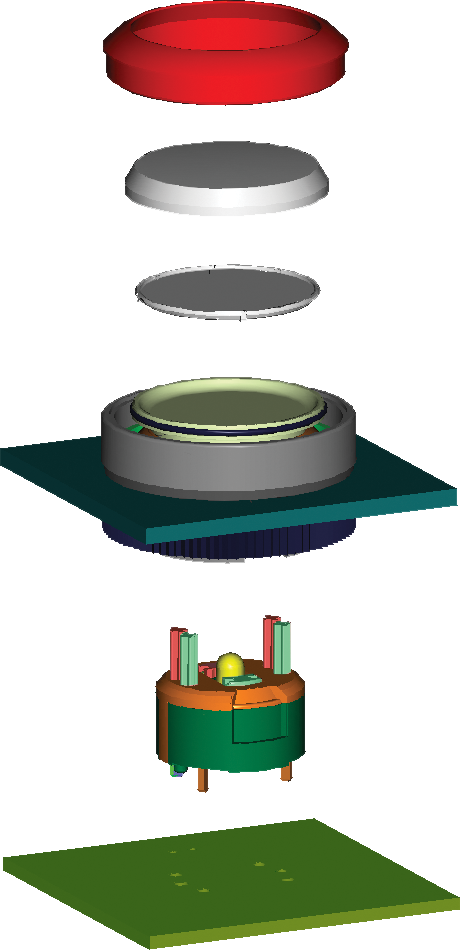

All RAFIX series come in modular design. They consist of one actuator and one switching element. You benefit because you only need to store the individual parts and can combine them as you wish. This gives you almost unlimited combination options for production and final assembly. You can create all the variations you require. However, if you want more, we can offer you a custom solution. Basically, the differences between the RAFIX series consist of the mounting depth, terminal types, and mounting holes from 16.2 mm to 30.3 mm.
The innovative switching element technology sets a new benchmark in the world of control components. The versatile assembly concept makes the RAFIX 22 FS+, RAFIX 22 FSR, and RAFIX 30 FS+ series cost-effective solutions. The system configuration is both flexible and modular. You can combine each FS technology switching element with any actuator in the three series. We distinguish between two assembly options.
