Rugged affordable Broadwell based box PC with 4 COMs

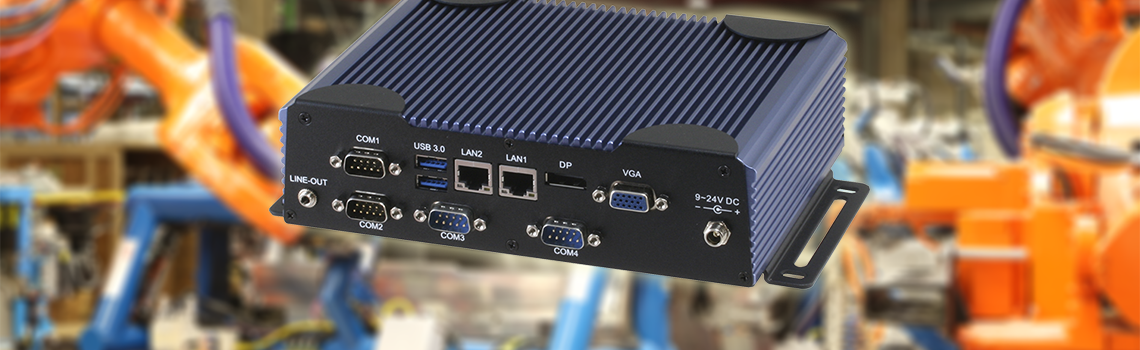

The BOXER-6638U from AAEON is a high performance industrial box PC which is about 30% smaller than its predecessors. High performance is assured with the Intel® Core™ i3-5010U driving the device, the U-series chip comes with greater power-savings and cost-efficiency. This enhanced processing power is used to power the device's many IOs, most prominent of which includes four COM ports. The BOXER-6638U supports a -20 to 60°C temperature range, and a wide operating voltage between 9 and 24V.

Supporting these enhanced operational parameters is the mechanical construction of the BOXER-6638U. Users wishing to access the device's interior can do so by simply removing screws at the base of the device, with no specialized methods or tools required.


Features
•   Intel® Core™i3-5010U CPU
•  TDP: 15W
•  Fanless
•  4 COM ports
•  2-4 USB3.0 or USB2.0 on front/rear (depending on version)
•  Display interface: VGA, DP
•  Dual gigabit Ethernet
•  Storage devices: mSATA, HDD/SSD
•  Full and half-size Mini-Card, SIM slot (optional for mSATA)
•  Wide temperature support: -20 to 60°C
•  9 to 24VDC supply voltage
•  Dimensions: 197x174x55mm
•  OS: Windows 10 (64 bit), Windows 8.1 (32/64-bit), Windows 7 (32/64-bit), Linux, •  Ubuntu 14.10


Applications
•  Industrial automation
