Design cases with insertable heatsinks

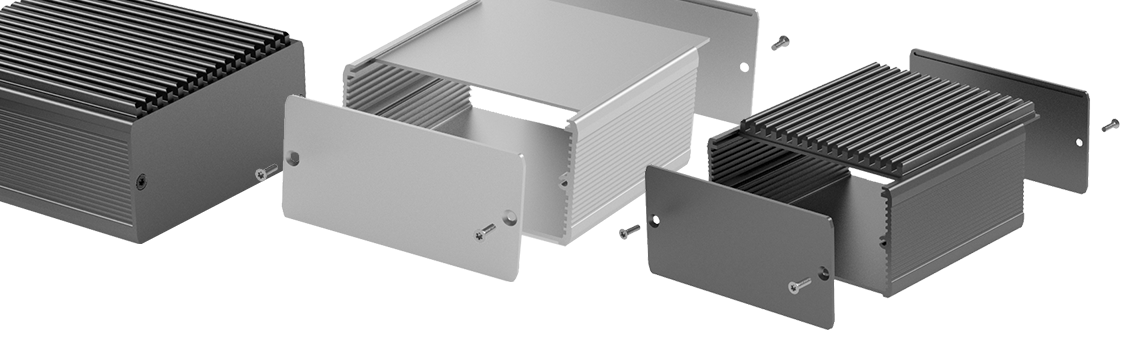

The increasing integration density of printed circuit board assemblies and the increasing amounts waste heat generated by the electronic components pose ever greater challenges for the cooling concept of the cases that are used. For these applications Fischer Elektronik offers a series of cases, the GE K... which has optimal heat dissipation properties.

The new, one side open, U-shaped profile of the cases contain integrated guides to fit electronic components or circuit boards as well as an insertable heatsink which assures the function of heat dissipation to the surroundings. It is dimensionally adjustable to the cooling concept of any assembly. Fixing the heatsink is through front and rear covers that are bolted to the profile of the case.

As standard, the GE K series is available in three different sizes, seven lengths (50, 80, 100, 120, 160, 200 and 220 mm) and in two surface finishes (natural and black anodised). The basic case, the heatsink as well as the covering plate can be mechanically machined, surface-treated and printed according to the customer's requirements. The GE K... cases are supplied as a disassembled assembly set including the covering plate and assembly accessories.


Features
•  Modern robust, elegant design
•  Optimal heat dissipation properties
•  One side open, U-shaped profile
•  Integrated guides to fit PCBs and insertable heatsink
•  Dimensionally adjustable
•  Available in three different sizes
•  Standard lengths: 50, 80, 100, 120, 160, 200 and 220 mm
•  Natural and black anodized surface finishes available
•  Supplied as set (incl. cover panels and mounting materials)
