  • Fischer ElektronikCasing

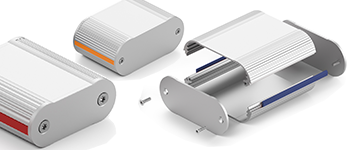

  • Fischer Elektronik has expanded the small aluminium housing area with the practical, visually appealing and attractively designed Tondo housing series.

    The modern designed versatile Tondo case is an ergonomically shaped small aluminium housing with integrated interior guide grooves to receive non-standardised printed circuit boards in 1.6 and 1.8mm material thickness. They are currently offered in three different standard versions, two surface models (natural colour-, and black anodised) and three lengths (50, 80, 100mm).

    The special geometry of the housing profiles makes it possible to receive film keyboards or front films. In addition to standard colours, it is possible to implement the design strips made of plastic (UL94-V0) integrated into the housing profiles, according to customised colour specifications. Along with the standard models, the housing can be mechanically processed, surface-treated and printed by customer request.


    Features
    •  Ergonomic cases out of shell profile which are slotted into each other
    •  Internal guide grooves for non-standardised components
    •  Circuit board thickness: 1.6mm at the side wall, 1.8mm at the screw-slot
    •  Easy and quick mounting
    •  Profiles are M3 pre-threaded
    •  Standard strip colours: turquoise, erika violet, ultramarine, chimney red and narcissus yellow
    •  Customizing colours and modifications on request


    Applications
    •  Miniature handheld applications

  • Fischer ElektronikCasing
  • The increasing integration density of printed circuit board assemblies and the increasing amounts waste heat generated by the electronic components pose ever greater challenges for the cooling concept of the cases that are used. For these applications Fischer Elektronik offers a series of cases, the GE K... which has optimal heat dissipation properties.

    The new, one side open, U-shaped profile of the cases contain integrated guides to fit electronic components or circuit boards as well as an insertable heatsink which assures the function of heat dissipation to the surroundings. It is dimensionally adjustable to the cooling concept of any assembly. Fixing the heatsink is through front and rear covers that are bolted to the profile of the case.

    As standard, the GE K series is available in three different sizes, seven lengths (50, 80, 100, 120, 160, 200 and 220 mm) and in two surface finishes (natural and black anodised). The basic case, the heatsink as well as the covering plate can be mechanically machined, surface-treated and printed according to the customer's requirements. The GE K... cases are supplied as a disassembled assembly set including the covering plate and assembly accessories.


    Features
    •  Modern robust, elegant design
    •  Optimal heat dissipation properties
    •  One side open, U-shaped profile
    •  Integrated guides to fit PCBs and insertable heatsink
    •  Dimensionally adjustable
    •  Available in three different sizes
    •  Standard lengths: 50, 80, 100, 120, 160, 200 and 220 mm
    •  Natural and black anodized surface finishes available
    •  Supplied as set (incl. cover panels and mounting materials)
