The SIM7100E from SIMCom is an ultra compact multi band LTE module which is based on the Qualcomm MDM9215. This complete multi-band TDD-LTE/FDD-LTE/WCDMA/GSM/GNSS SMT type module is designed with a powerful ARM Cortex™ A5, QDSP6 core processors. It delivers 50Mbps-up and 100Mbps-down data rates on LTE FDD networks, fully backward compatible with existing WCDMA/HSPA networks.The SIM7100E has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.The miniPCIe type SIM7100E-PCIE is a SIM7100E module combined with a miniPCIE adapterboard.Features• Five band FDD-LTE B1/B3/B7/B8/B20• Dual band TDD-LTE B38/B40• Dual band UMTS/HSDPA/HSPA+ B1/B8• Dual band GSM/GPRS/EDGE 900/1800MHz• Qualcomm MDM9215 based• ARM Cortex™ A5, QDSP6 core processors• LTE: 50Mbps-up & 100Mbps-down• Supply voltage: 3.4 to 4.2V• Operating temperature: -40° to +85176C• Control Via AT Commands or Gobi API• Standalone GNSS • SMT package, dimensions 30x30x2.9mm• Embedded FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMSApplications• Smart metering• Healthcare and alarm products • Mobile POS

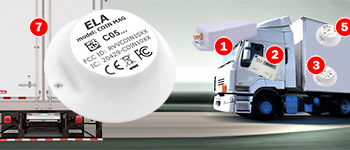

ELA Innovation develops readers and active RFID tags to monitor goods for the tracking of tools and equipment in the logistics industry, as well as man-down alarm technology. Its activities hinge around the research & development, manufacturing and sales of high range active RFID solutions, industrial wireless sensors and connected objects. ELA’s greatest growth has been in the deployment of ’telematics solutions’ for trucks and trailers, in which data about goods and drivers is transmitted via wireless sensors and tags to a reader, and is then forwarded by a cellular connection, such as the FOX3 from Falcom, to a back-end server. The systems are used to identify the conditions of goods within a trailer, along with the open or closed status of the trailer door. This information is paired with GPS-based data, collected by a user’s automatic vehicle location box (such as the FOX3 from Falcom) and sent to a server. This way users can receive alerts of the unexpected opening of a trailer or the breaching of an accepted temperature range within the trailer. Features• Wide range of active tags, readers, software and antennas• Long RF range (up to 100m)• Robust industrial products• Trailer’s temperature and humidity monitoring• Trailer & Driver ID• Event detection (doors opening, contact detection, asset’s movement, etc.)• Active RFID Integration with fleet management solutions• Automatic asset inventory• Battery life up to 10 yearsApplications• Refrigerated transport• Transport of blood• Biomedical transport• Pharmaceutical industry• Monitoring drill temperatureAt picture1. SCIEL reader lite connected to FOX3 2. Active RFID tag for Driver ID3. Active RFID tag for Trailer ID4. Wireless RFID Temperature Sensor for Temperature Monitoring5. Wireless RFID Humidity Monitoring6. Active RFID TAG for Asset ID for Automatic Inventory7. Wireless RFID Magnetic Sensor for Door Opening Detection
